Triken 330, the fishing kayak (made in Italy) born from the experience of the Triken 405, an advanced version in terms of accessories compared to its older brother from which it takes on the great stability widely demonstrated.

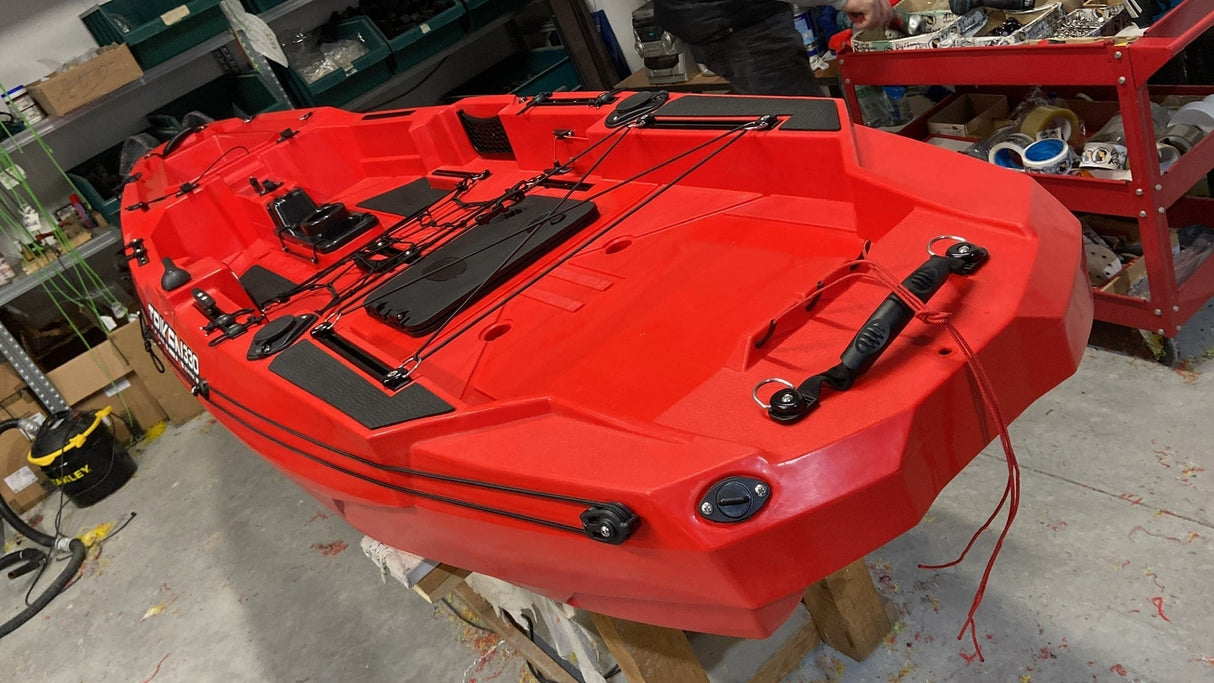

Raised bow and cuts on the side which favor the flow of water.
Decking divided into 3 levels of height, for easy water drainage, deck space with holes for emptying excess water.
Double pair of non-slip pads supplied with "crocodile" design which improve grip when fishing standing.

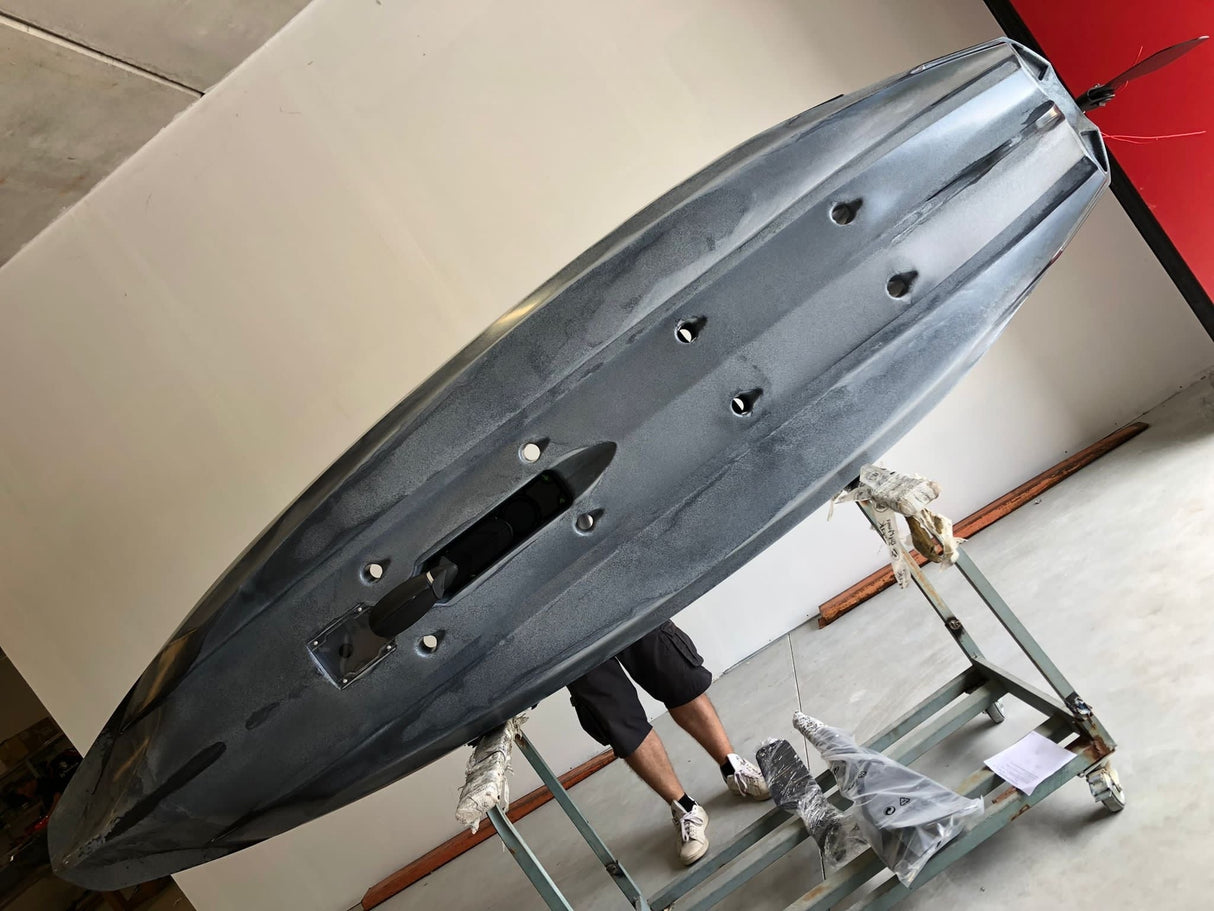

A "trimaran" hull now consolidated in terms of reliability and stability like the 405, the Triken 330 stands out for its great handling thanks to a smaller overhang between propeller and rudder, so as to allow the kayak to turn with a reduced radius of curvature.
Improved ease of transport, both in terms of weight which is 30 kg, in addition to the handles (4 external + 2 integrated in the rear under the stern) well distributed and repositionable as desired.
Excellently distributed spaces, with a large rear hatch, easily accessible even when seated.

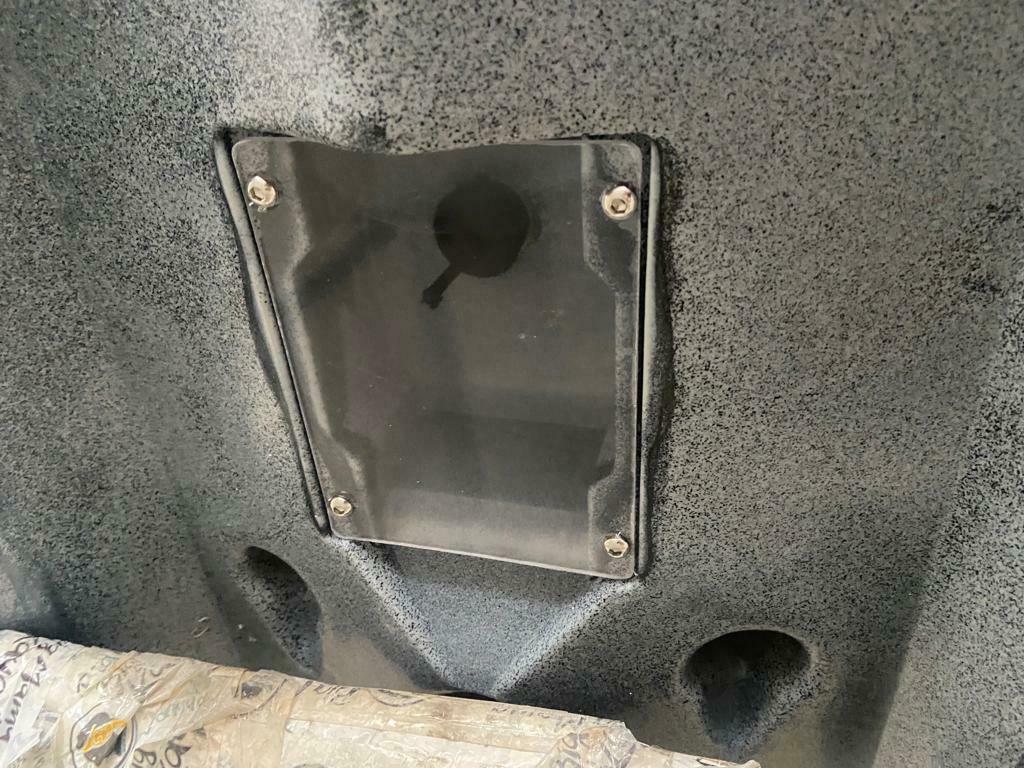

Retractable battery compartment located under the support of the pedal system, and transducer compartment integrated under the keel, with door and hole for connection to the battery compartment.
Large bow locker with closed bottom (but potentially openable with additional optional inspection locker)
Pedal system included, helical, with 1/10 repeater (1 turn of pedals and 10 of helix) with direct traction reverse gear (simply pedal backwards to reverse the rotation of the pedals and have immediate control over the conduction)
The propeller pedal system, already extensively tested on the triken 405, appears to be very reliable, robust and non-invasive on the joints, as normally happens in the case of exercise bike training.

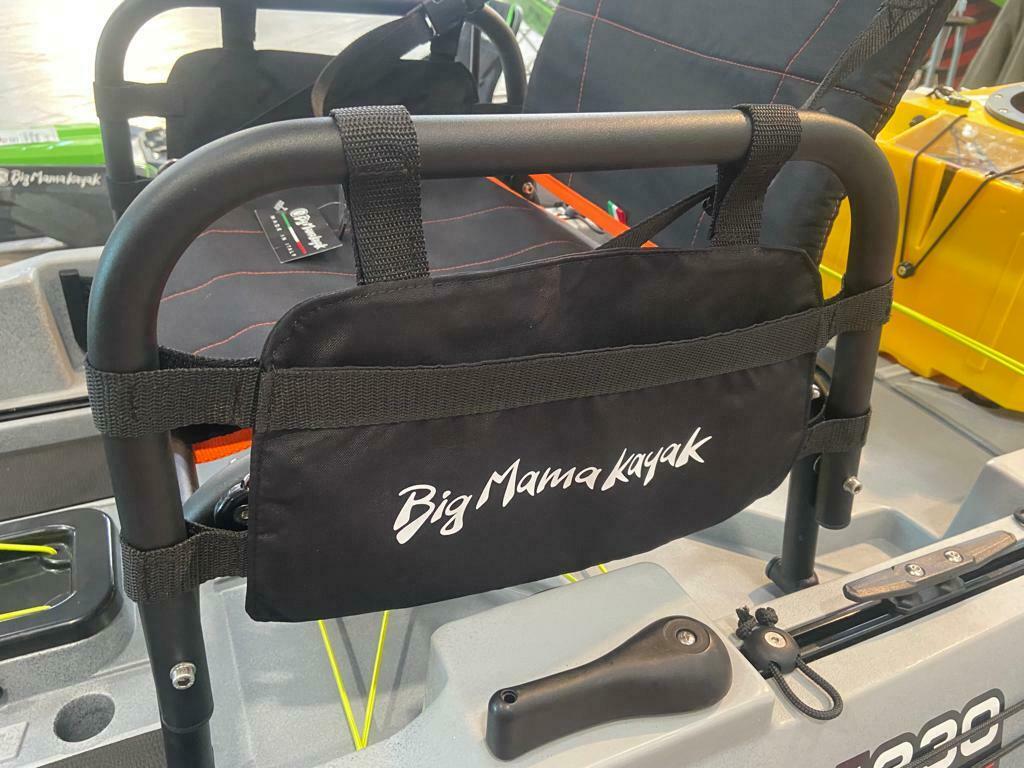

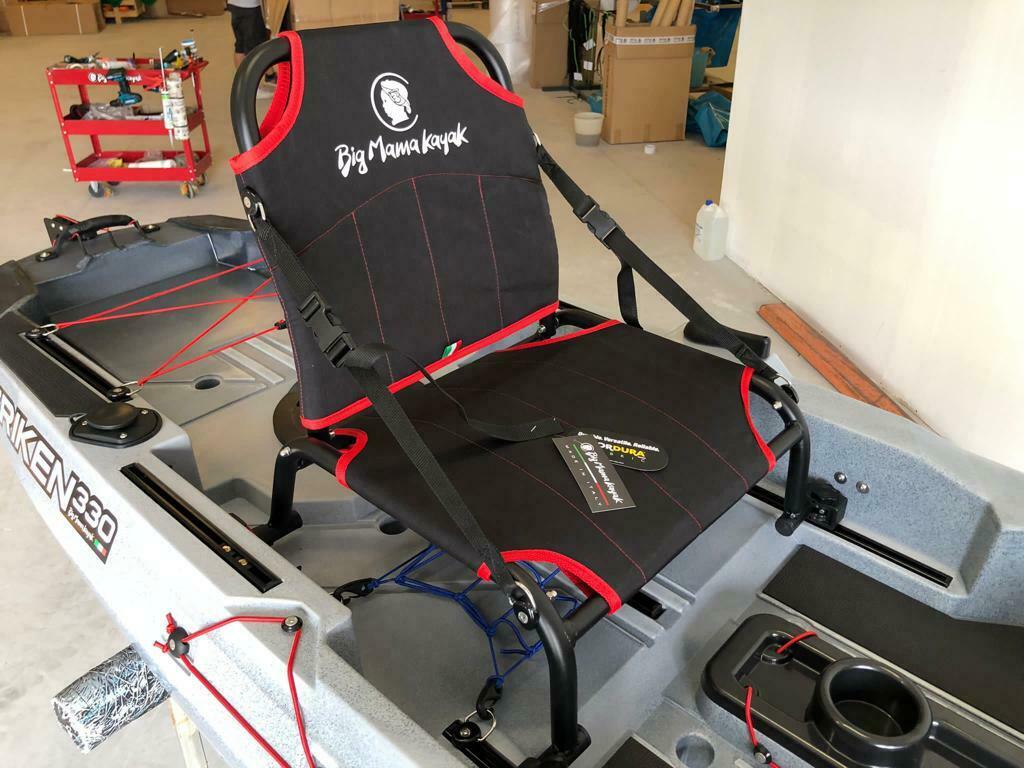

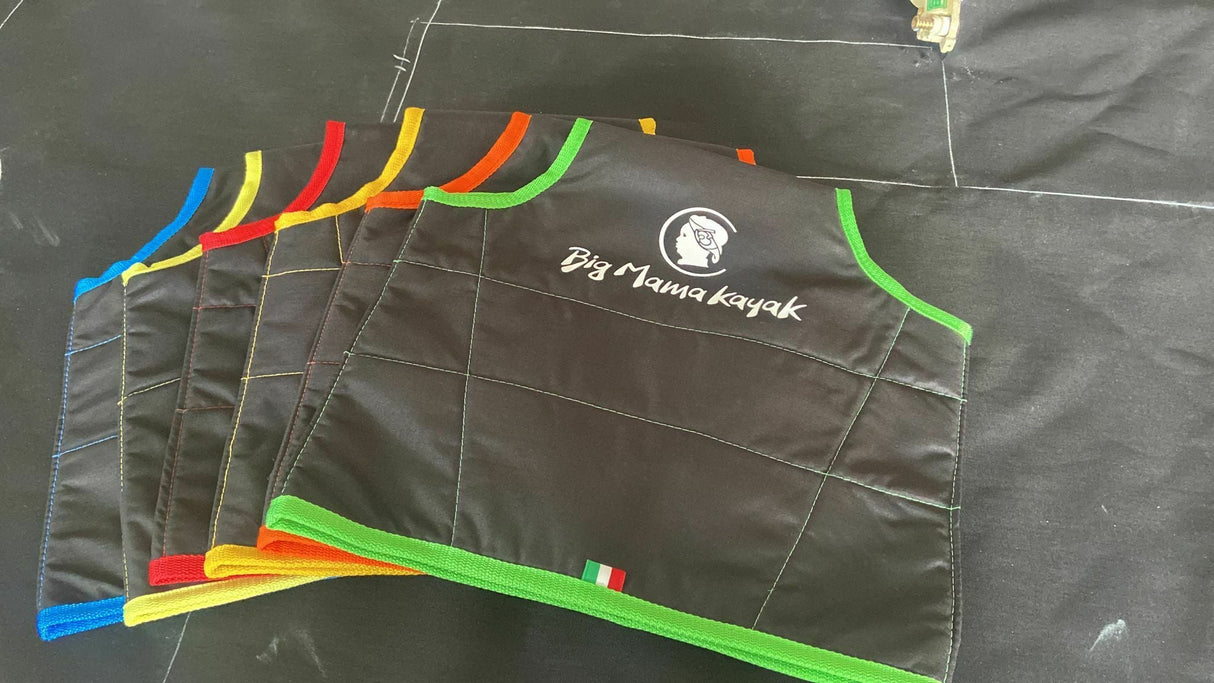

Raised seat with powder-coated aluminum frame, high tensile strength, water-repellent and tear-proof Cordura fabric, entirely handmade in Italy, space under the seat with elastic net ideal for positioning classic bait boxes.
Rudder control lever on the left with cable inspection hatch underneath.

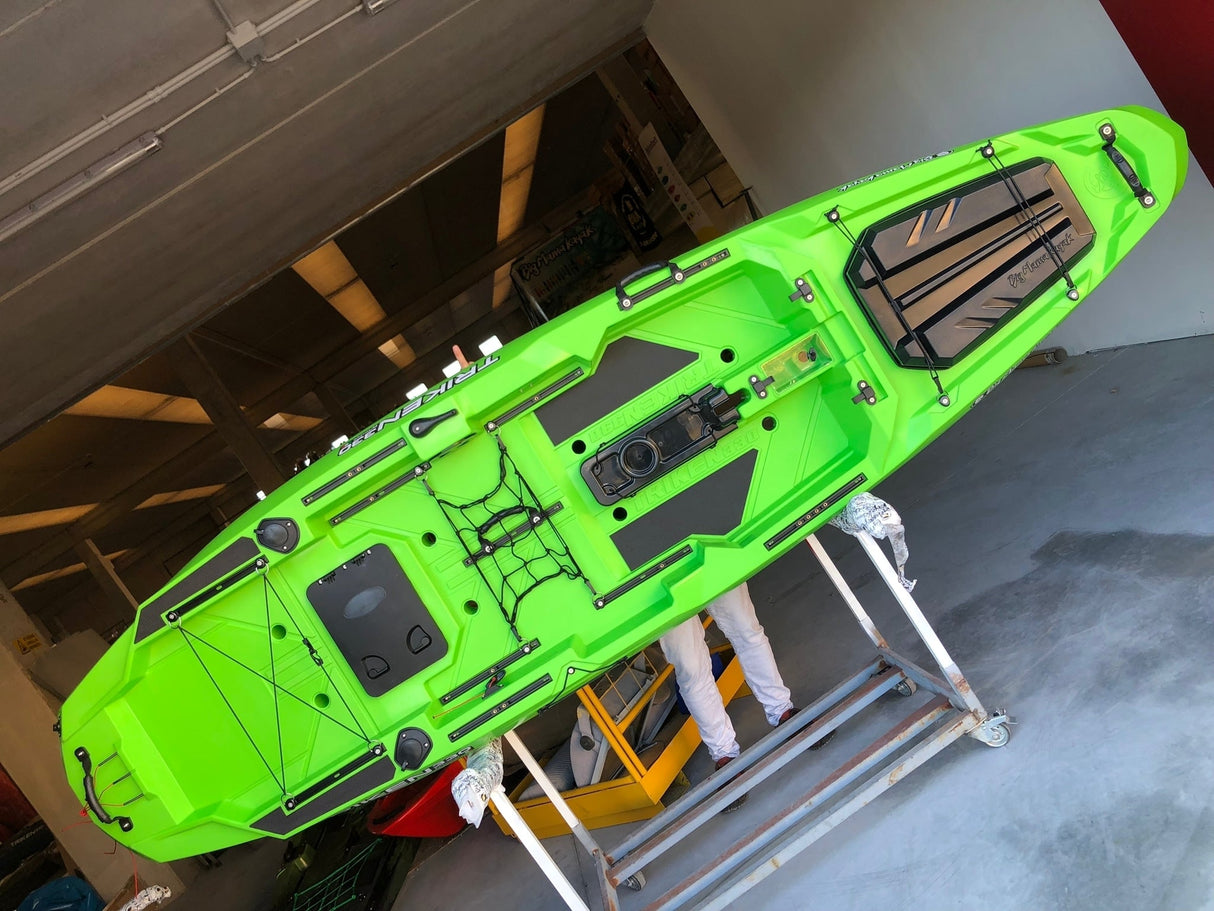

Finally, great modularity and customization of the triken 330, thanks to 11 Railblaza-type sliding bars, which allow you to mount and move handles, hooks and any accessory from the extensive Railblaza catalogue.

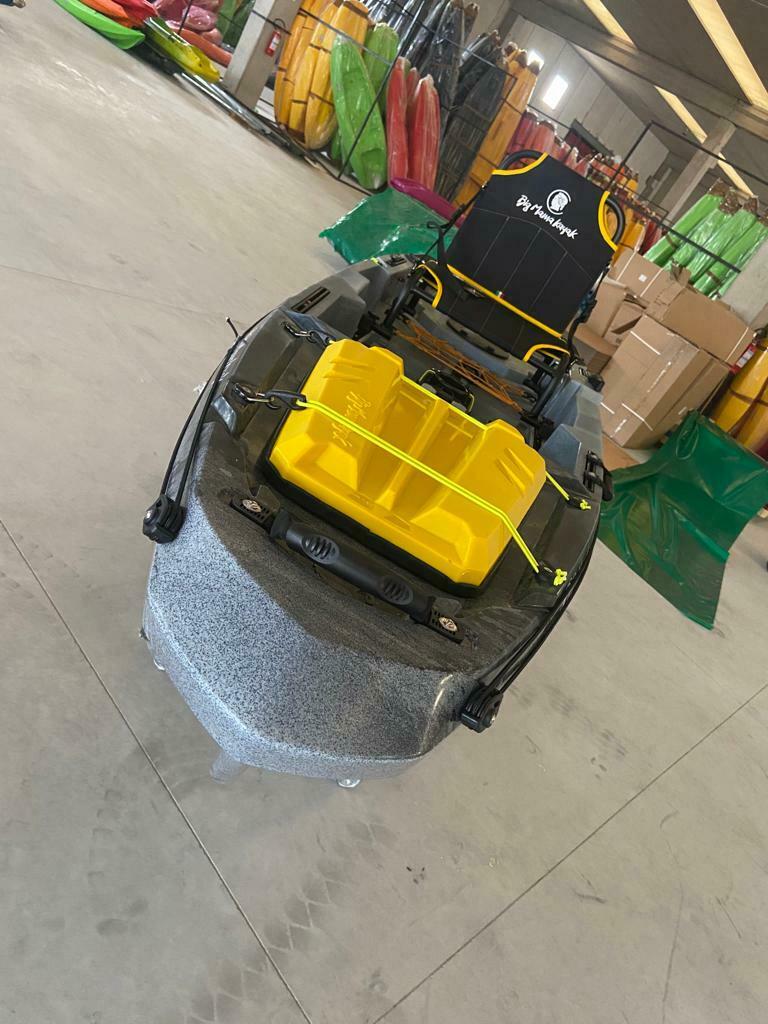

The specific equipment for fishing are 2 integrated rear rod holders and 2 adjustable rod holders included, as well as the possibility of mounting the 29 liter oxygenated livewell (optional) with integrated battery and "overflow" drainage system.
As with any Triken, the great advantage is that of purchasing a handcrafted product and above all made in Italy, where maximum customization is possible, from the colors of the hull, the locker lid and the accessories.
If desired, it is possible to visit the production by making an appointment (0775871479) to view and choose the best desired configuration
TECHNICAL FEATURES:
LENGTH 330 CM
WIDTH 90 CM
HEIGHT 35 CM
2 ADJUSTABLE ROD HOLDER
2 INTERNAL ROD HOLDERS
1 STERN LOCKER
1 INSPECTION LOCK UNDER THE HELM
1 FRONT LOCKER WITH COVER IN COLOR OF YOUR CHOICE
11 RAILBLAZA BARS
4 EXTERNAL HANDLES
2 INTEGRATED REAR SOCKETS
1 RUDDER
1 PADDLE INCLUDED
1 PEDAL SYSTEM, INCLUDED
1 RAISED SEAT IN ALUMINUM AND FABRIC (MADE IN ITALY)

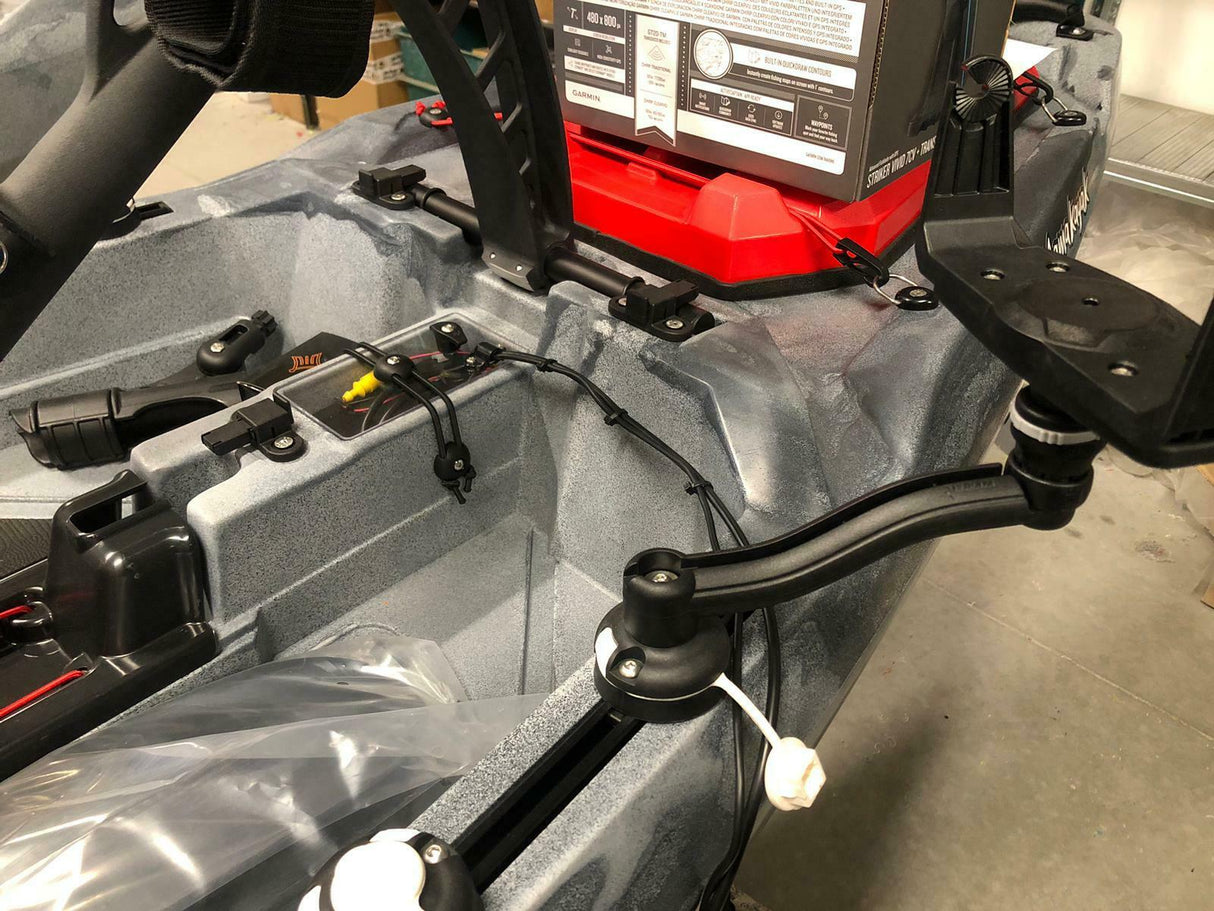

echo sounder screen assembly kit consisting of 1 starport + 1 adjustable arm + 1 railblaza base codes: 03-4015-11 + 02-4147-11 + 02-4136-11
Mounting your boat with RAILBLAZA accessories just got a lot faster and more versatile with the MiniPort TracMount. The MiniPort TracMount is designed to fit most existing kayak routes,
Compact design and completely tool-free operation, easy to fit and adjust by simply twisting the MiniPort which tightens directly into the rail using our TracNut. Repositioning into the track is as simple as twisting to release the tension.
PLEASE NOTE: Designed for use in light duty applications. If using for trolling with RodHolder, it must be used on the starboard side, so that the MiniPort stiffens when the load comes in from a strike. If used on the left (port) side, the MiniPort will loosen as the load lands on the fishing rod).
NEVER UNTIL TODAY HAVE IMAGES SO CLEAR
Use STRIKER Vivid 7cv with integrated GT20 transducer, the best-in-class fish finder with seven new high-contrast color shades that make it easier to see what's under your boat and distinguish bottom types, structures and fish.
DEPTH SOUNDER WITH CLEAR AND VIBRANT COLORS
Choose from seven new color shades to more easily see what's beneath your boat and distinguish bottom types, structure and fish on your 7-inch fish finder.
INTEGRATED DEPTH SOUNDER
Use the included GT20 transducer to get traditional Garmin CHIRP sonar and ClearVü CHIRP scanning sonar.
WAYPOINT MARKING
To catch more fish, you need to know where they feed. Use waypoint marking for hot spots so you can easily find your way back.
BUILT-IN HIGH SENSITIVITY GPS
High-sensitivity GPS lets you use the fish finder to plan and create routes, as well as view vessel speed.
QUICKDRAW CONTOURS
No one knows the waters you fish in better than you. With the STRIKER Vivid 7cv fishfinder you will see the details of the seabed and the bathymetry generated directly on the screen as the boat moves.
COMPONENTS INCLUDED
STRIKER Vivid 7cv includes a tilt/swivel bracket, as well as mounting hardware and cables for transom and electric motor installation.
WI-FI CONNECTIVITY
Connect to the ActiveCaptain ®1 app to transfer waypoints, receive Smart Notifications (including software update notifications), and access the Garmin Quickdraw™ community.
SPECIFICATIONS;
General
- DIMENSIONS: 23.5 x 14.0 x 5.8 cm (9.3" x 5.5" x 2.3")
- SCREEN RESOLUTION, WXH: 800 x 480 pixels
- SCREEN TYPE; WVGA color
- WEIGHT; 0.8kg (1.7lb)
- WATERPROOF CLASSIFICATION: IPX7
- TRANSMISSION POWER; 500W (RMS)
Depth sounder functions and specifications
- DOUBLE FREQUENCY: YES
- DOUBLE CONE; YES
- SUPPORTED FREQUENCIES; Traditional: 50/77/200 kHz CHIRP (medium and high frequency) ClearVü: 260/455/800 kHz
- ZOOM; YES
- WATER TEMPERATURE DATA AND GRAPH; YES
Fishfinder functions
- SPLIT SCREEN ZOOM; YES
- ULTRASCROLL® (ALLOWS YOU TO VIEW FISH TARGET WHEN THE VESSEL TRAVELS AT HIGH SPEED) YES
- FISH SYMBOL ID (ALLOWS YOU TO IDENTIFY FISH TARGETS); YES
- AUTOMATIC GAIN TECHNOLOGY (ALLOWS YOU TO REDUCE SURFACE NOISE AND ENLARGE THE TARGETS); YES
- ADJUSTABLE DEPTH LINE (ALLOWS YOU TO MEASURE THE DEPTH OF OBJECTS PRESENT IN THE WATER); YES
- A-SCOPE (ALLOWS YOU TO VIEW THE PRESENCE OF FISH UNDER THE TRANSDUCER BEAM IN REAL TIME); YES
- WATER TEMPERATURE SENSOR INCLUDED, YES
Additional Features;
- One 4-pin transducer port
- One 4-pin ClearVü transducer port
- Wireless Connectivity: Yes
- Quickdraw Contours
- Built-in GPS
- Mark waypoints
- COG
- Current draw at 12V: 0.67A
